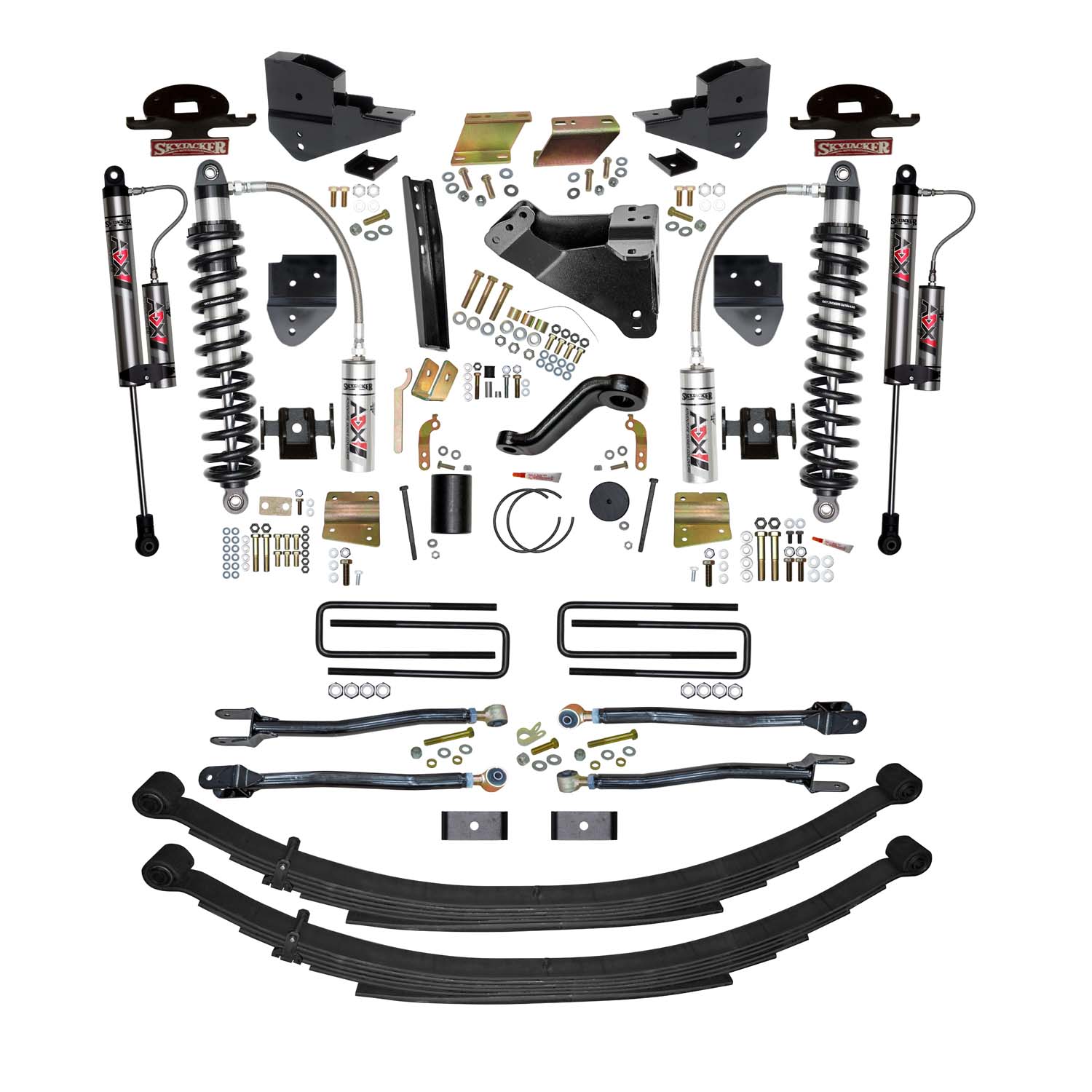

Skyjacker 6 in. ADX 2.5 Coilover Suspension Lift Kit With 4-Link Conversion. F23624KS-X

If you think that your Ford looks equally good clean as it does covered in off-road grime. You need to take your Super Duty to the next level. With Skyjacker’s Coilover 6 in. lift kit, you can reap the benefits of On-Road Refinement and Off-Road Readiness.

2.5-inch OD ADX 2.5 Adventure Series Aluminum Coilover Shocks with remote reservoir includes Skyjacker’s legendary Softride® coil spring technology engineered to deliver a quiet consistent controlled stability and smooth riding comfort.

Precise CNC laser cut and precision formed in CNC press brake, all bracketry for coilover shock / reservoir mounts connect to / around OEM mounts.

Formed from 2-inch OD x 0.188 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling.

Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4” forged rod end with Rubber Encased bushing.

Radius arm drop brackets lower the OEM radius arms mounts at the frame to maintain the correct caster specifications for proper alignment. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered.

The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection.

Skyjacker Softride® leaf springs are individually shot-peened with hard steel pellets at very high velocities. Softride® springs also have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon® wear pads between leafs and bolt style spring clips prevent binding and eliminate friction.

ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks has an innovative off-road race-inspired full-displaced valving system.
