20-Inch Black Series LED Kit for Honda Pioneer 1000 (2016-2025)
- Fits 2016-2025 Honda Pioneer 1000, 1000-5, and 1000-6 Deluxe Crew variants — check the fitment list for your model year
- Kit contents: Pioneer under-bed mount plus one 20-inch Black Series single-row LED light bar
- 7,200 lumens at 100 watts with a 30-degree spot beam, IP67-sealed die-cast aluminum housing
- Bolt-on mounting, no drilling or cutting; listed install time 2-3 hours with a downloadable guide available
- Off-road use only; 1000-5 Deluxe fitment applies to rear-seat configurations
The Trail Fortress check
Will it fit your truck?
✓ Fits
+ 3 more applications
For off-road use only fits 1000-5 deluxe models with rear seats. Fitment on this page is based on the manufacturer’s application data.
About this kit
20-Inch Black Series LED Kit, fitment-checked

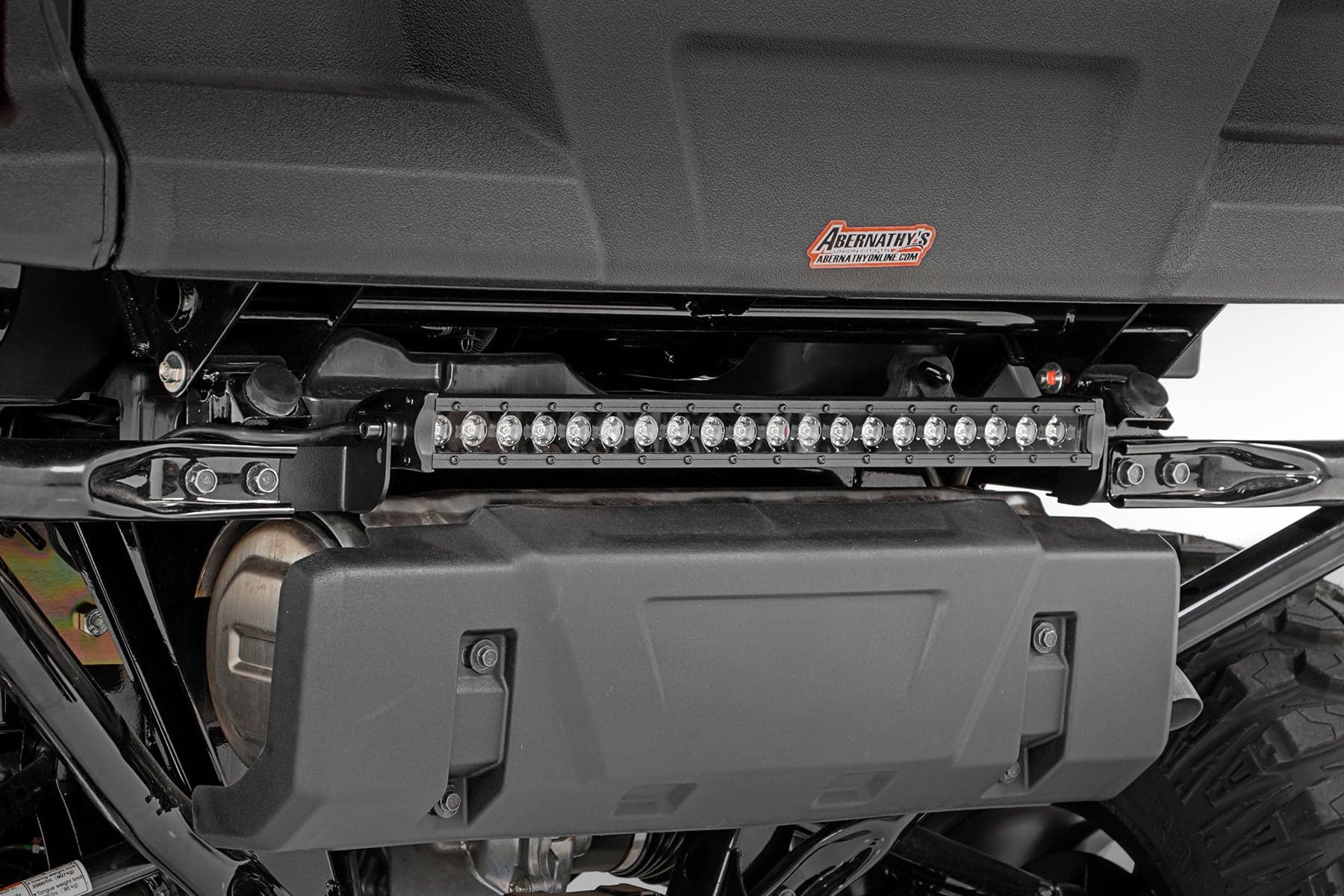

Rough Country 92006 pairs a 20-inch Black Series single-row LED light bar with an under-bed mount built for the Honda Pioneer 1000 and 1000-5. The bar puts out 7,200 lumens on 100 watts through a 30-degree spot pattern aimed rearward, and the die-cast aluminum housing carries an IP67 seal against dust and water.

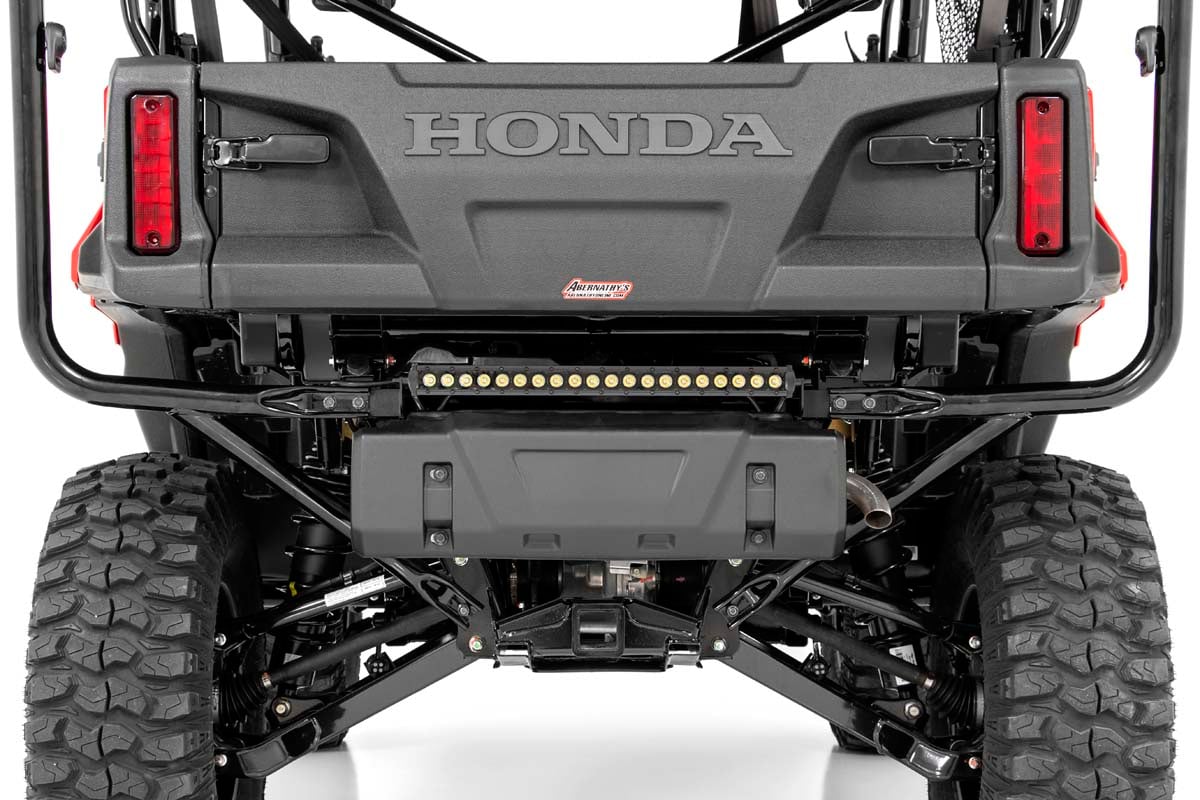

This 20-inch Black Series LED light bar kit for the 2016-2025 Honda Pioneer 1000 and 1000-5 mounts under the bed and throws light behind the machine for backing up, trail work, and after-dark chores. The kit ships as two pieces: the Pioneer-specific under-bed mount and the single-row bar itself, plus a snap-on cover and wiring harness. Mounting is bolt-on with no drilling or cutting, and Rough Country lists a 2-3 hour install time. Note the off-road-only designation, and that 1000-5 Deluxe coverage applies to rear-seat models. A downloadable installation guide is available.
What’s in the box
Kit contents
- 1× LED Light Under Bed Mount 92005
- 1× 20 Inch Black Series LED Light Bar 70720BL$139.95
Priced components are sold separately here, so a worn shock or arm can be replaced on its own later.
Rough Country shares subassemblies across kits, so individual package labels can carry broader application ranges. The complete 92006 kit fits the vehicles shown in the fitment section above.
Specifications
Specs
| Brand | Rough Country |
| Part number | 92006 |
| UPC / GTIN | 00843030184841 |
| Shipping weight | 8.37 lb |
| Country of origin | CN |
| Category | Lighting › Light Bars |
