3.5-Inch Lift Kit with Red Control Arms for Sierra Denali
- Fits 2014-2016 GMC Sierra 1500 Denali 4WD equipped with Magnetic Ride Control only
- Red forged upper control arms for 2.5-3.5 inches of lift, ball joints pre-installed
- Works with cast aluminum or cast steel factory arms; not with 2016 and later stamped steel upper control arms
- Cutting and grinding required; a front differential mass damper must be removed if fitted
- Factory wheels can be retained using 0.25-inch wheel spacers, part 1065
- Downloadable installation guide available. Shipping weight: 46.0 lb
Will it fit your truck?
✓ Fits
✕ Does not fit
- 2016+ models with Stock Stamped Steel upper control arms Requires cutting and grinding New lift block replaces the factory equipped block
ONLY fits GMC Denali models with Magnetic Ride Control. If truck is equipped with a mass damper on the front differential the damper must be removed. Retain your factory wheels with our 0.25" wheel spacers (#1065). Fitment on this page is based on the manufacturer’s application data.
3.5-Inch Lift Kit with Red Control Arms, fitment-checked
Rough Country 18901RED is a 3.5-inch lift kit built specifically for the 2014-2016 GMC Sierra 1500 Denali 4WD with Magnetic Ride Control. Red forged upper control arms rated for 2.5-3.5 inches of lift ship with the ball joints already pressed in, and a fabricated rear block replaces the factory unit. Cutting and grinding are required.
Denali with Magnetic Ride Control is the whole target here. This 3.5-inch kit is built for that combination on the 2014-2016 GMC Sierra 1500 4WD and nothing else. The red forged upper control arms are rated for 2.5-3.5 inches of lift and arrive with ball joints pressed in, differential drops keep axle angles where they belong, and a fabricated rear block takes the place of the factory one. Trucks running stamped steel upper control arms from 2016 on are excluded, and cutting and grinding are part of the job. Factory wheels can be kept with a 0.25-inch wheel spacer, part 1065.

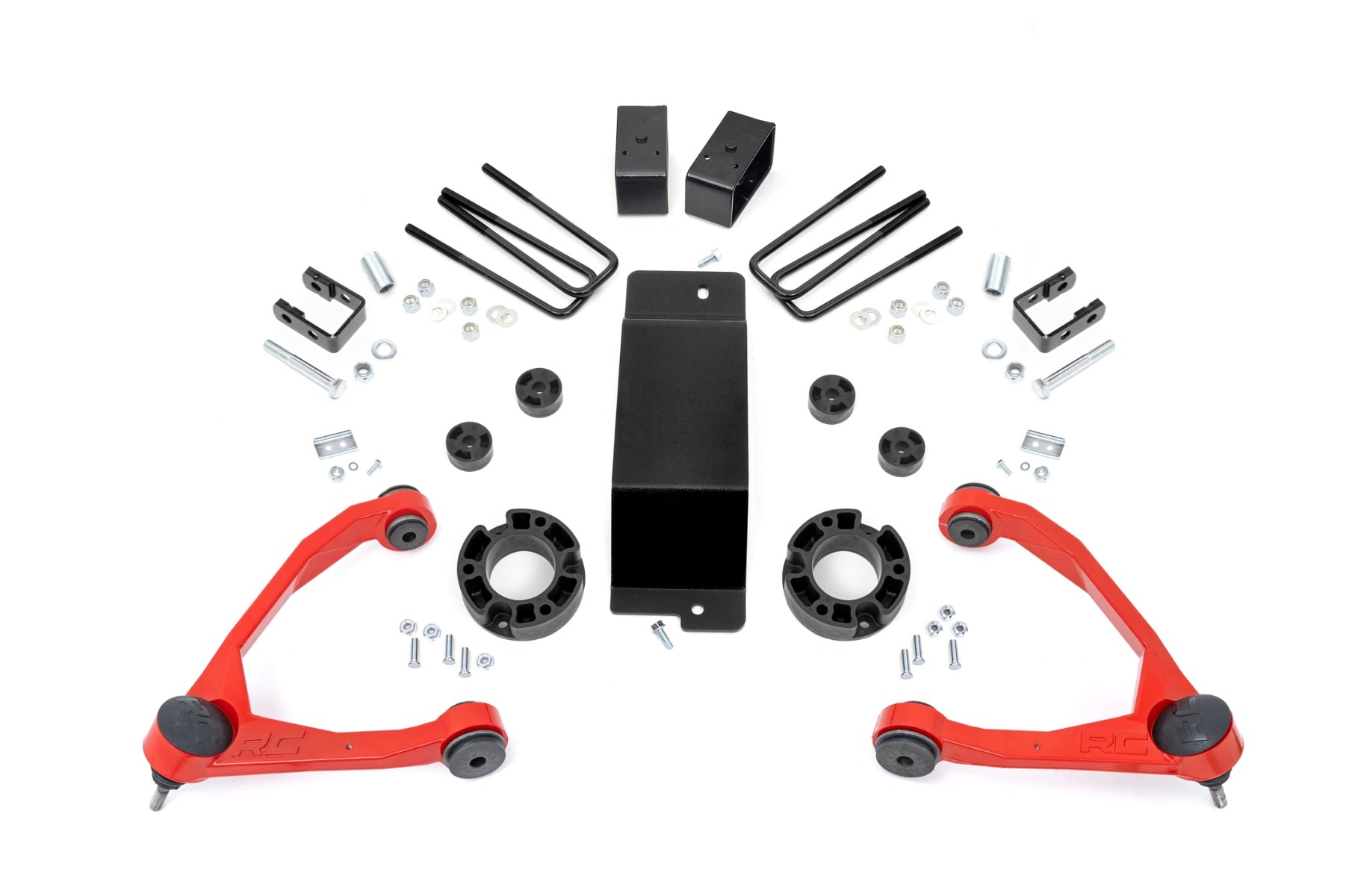

Kit contents
- 1× 3.5" Kit Box 12170BOX1
- 1× 3.5" Spacer Box 12170BOX2
- 1× Red Forged Upper Control Arms 19401ARED$349.95
- 1× 3.5in Kit Box 188BOX8
Priced components are sold separately here, so a worn shock or arm can be replaced on its own later.
Rough Country shares subassemblies across kits, so individual package labels can carry broader application ranges. The complete 18901RED kit fits the vehicles shown in the fitment section above.
Specifications
| Brand | Rough Country |
| Part number | 18901RED |
| UPC / GTIN | 00840269940187 |
| Lift height | 3.5 in |
| Shipping weight | 46 lb |
| Country of origin | CN |
| Category | Suspension & Lift Kits › Lift Kits |
