3.5-Inch Lift Kit with M1 Shocks for 2007–2013 Silverado/Sierra 1500 — Part 11940
- M1 loaded struts up front, M1 monotube shocks at the rear
- 3.5 inches of lift on 2007–2013 Chevy Silverado 1500 and GMC Sierra 1500 4WD
- 2007 Classic models and trucks with aftermarket control arms are excluded
- Factory wheels need a 0.25-inch spacer, part 1065
- Cutting and grinding required — downloadable installation guide available
The Trail Fortress check
Will it fit your truck?
✓ Fits
✕ Does not fit
- 2007 "Classic" models
Requires cutting and grinding. Does NOT work with aftermarket control arms. New lift block replaces the factory-equipped block. For a visual please click here. To ensure adequate clearance when lowering the differential models equipped with a mass damper on the front differential must be removed. To retain factory wheels a 0.25" wheel spacer will be required SKU: 1065. Fitment on this page is based on the manufacturer’s application data.
About this kit
3.5-Inch Lift Kit with M1 Shocks, fitment-checked
M1 monotube damping front and rear, wrapped around a 3.5-inch knuckle lift for 2007–2013 Chevy Silverado 1500 and GMC Sierra 1500 4WD. The knuckles are cast steel and the factory control arms stay put. Aftermarket control arms rule the kit out, the 2007 Classic body style is not covered, and cutting and grinding are part of the installation.
This 3.5-inch lift kit for the 2007–2013 Chevy Silverado 1500 and GMC Sierra 1500 4WD builds the front end on M1 loaded struts and adds an M1 monotube shock pair at the rear, so damping is matched end to end. Cast steel knuckles do the lifting, which keeps the factory suspension in service and raises the CV axle clear of the lower control arm. Expect cutting and grinding during installation; a downloadable installation guide is available. The kit does not cover 2007 Classic trucks or any truck fitted with aftermarket control arms, and factory wheels need a 0.25-inch spacer, part 1065.

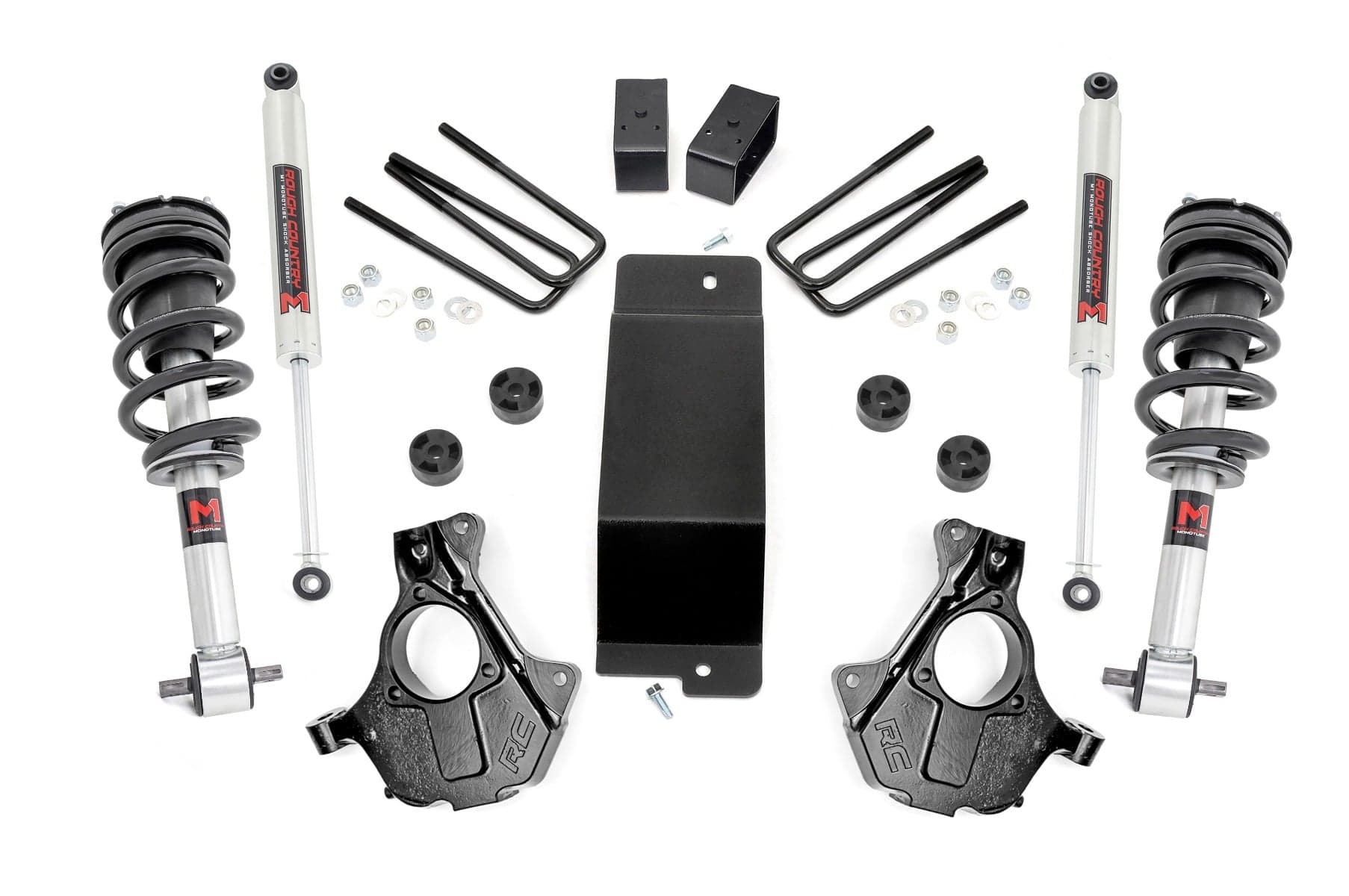

What’s in the box
Kit contents
- 1× 3.5" Kit Box 12170BOX1
- 1× M1 Loaded Strut Pair 502084
- 1× M1 MONOTUBE SHOCK PAIR 770738P
- 1× 3.5in Cast Steel Lca Knuckles 11930BOX1
Rough Country shares subassemblies across kits, so individual package labels can carry broader application ranges. The complete 11940 kit fits the vehicles shown in the fitment section above.
Specifications
Specs
| Brand | Rough Country |
| Part number | 11940 |
| UPC / GTIN | 00840269910692 |
| Lift height | 3.5 in |
| Shock package | M1 series |
| Shipping weight | 140 lb |
| Country of origin | CN |
| Category | Suspension & Lift Kits › Lift Kits |
| Installation guide | Downloadable PDF |
