Hidden Bumper LED Light Bar Mounts for Ram 2500/3500 4WD (2011-2018)
- Fits 2011-2018 Ram 2500 and 3500 4WD — check your submodel in the fitment list
- Curved single-row or dual-row bars only; X5 bars are not compatible
- Requires light bars with 8mm posts measuring 42 3/16-inches between mounting points
- Front tow hooks must be removed; cannot be installed alongside the 70206 brackets
- Light bar sold separately — matches the 40-inch curved dual-row kit (72940)
- Downloadable installation guide available. Shipping weight: 2.0 lb
The Trail Fortress check
Will it fit your truck?
Requires removal of front tow hooks ONLY works with Curved Light Bars Does NOT work along side Rough Country 20-inch Hidden Bumper Brackets (70206) - Only one kit can be installed Designed to work with light bars with 8mm mounting posts Designed to work with light bars measuring 42 3/16-inches from mounting point to mounting point Does NOT work with Rough Country X5 Light bars Light bar not included Fitment on this page is based on the manufacturer’s application data.
About this part
Hidden Bumper LED Light Bar Mounts, fitment-checked

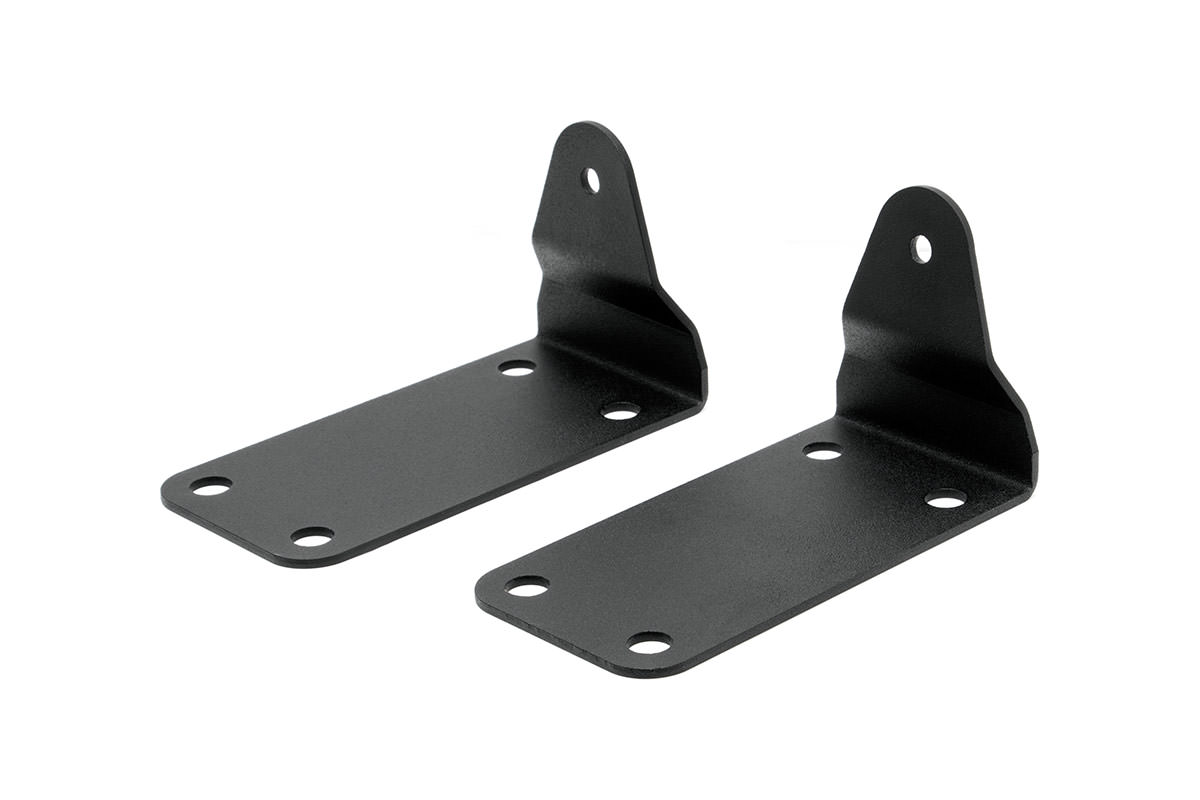

Rough Country 70569 is a hidden bumper mount bracket set for 2011-2018 Ram 2500 and 3500 4WD trucks. The brackets tuck behind the bumper for a factory look and accept single-row or dual-row curved bars with 8mm mounting posts spaced 42 3/16-inches apart. The front tow hooks come off during the install, and the light bar is a separate purchase.
These hidden bumper mounts fit 2011-2018 Ram 2500 and 3500 4WD trucks across the Tradesman, ST, SLT, Big Horn, Lone Star, Outdoorsman, Laramie, Laramie Longhorn, Laramie Limited, Limited, and Power Wagon submodels shown in the fitment section, plus Power Wagon on the 2500. The bracketry bolts on and stays out of sight behind the bumper. Curved bars only — straight bars and Rough Country X5 bars will not work, and this set cannot be run together with the 20-inch hidden bumper brackets (70206). Pair it with the 40-inch curved dual-row kit (72940) or another bar matching the post spec, and download the installation PDF before you start.
Specifications
Specs
| Brand | Rough Country |
| Part number | 70569 |
| UPC / GTIN | 00843030113438 |
| Shipping weight | 2 lb |
| Country of origin | US |
| Category | Lighting › Mounts & Brackets |
