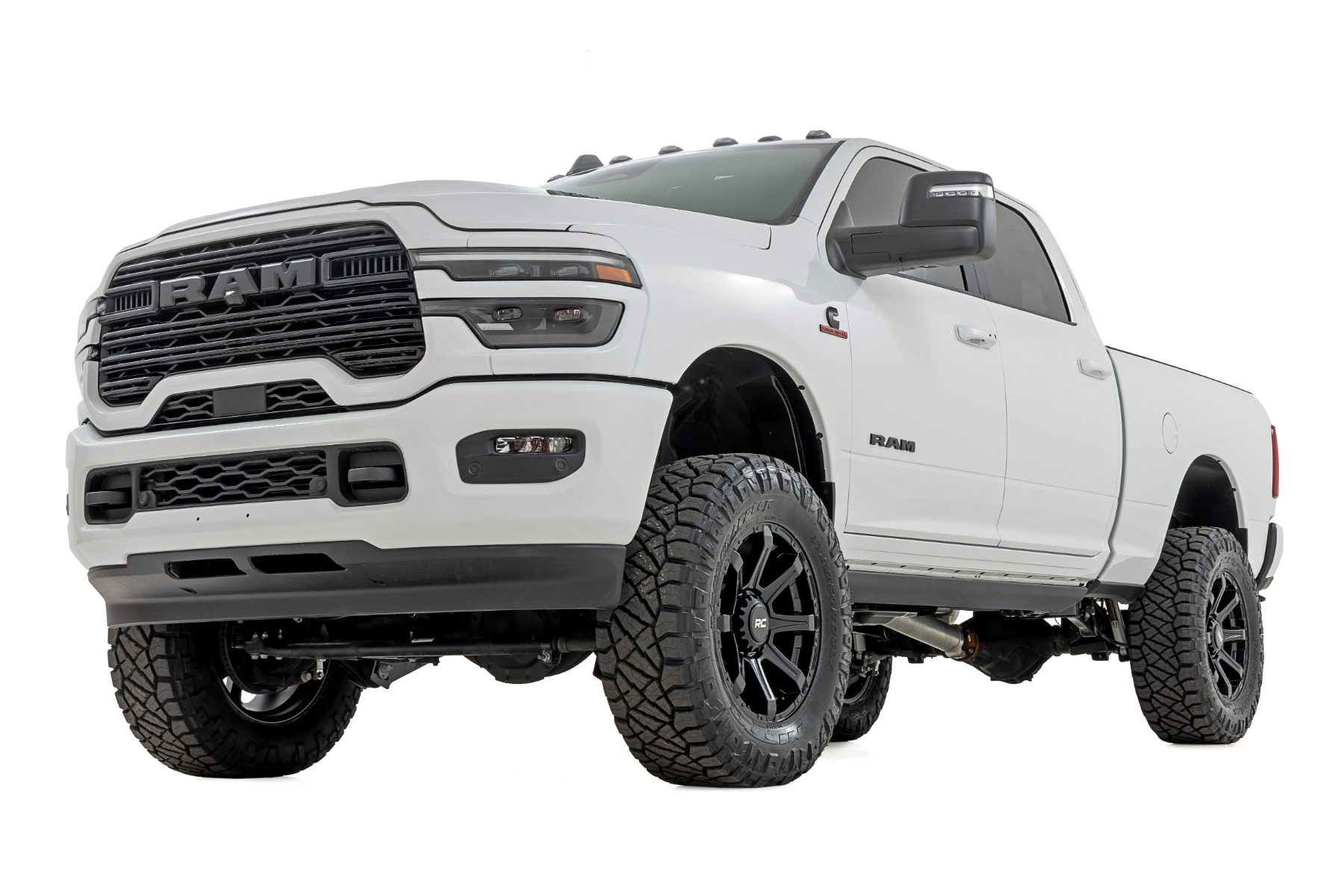

5-Inch Lift Kit with N3 Shocks for 2025 Ram 2500 4WD
- Fits 2025 Ram 2500 4WD diesel models — Tradesman through Limited Longhorn, see the fitment list
- Excludes Power Wagon models and any truck with a manual transfer case
- Two N3 shock pairs, radius arms, lifted front coils, track bar brackets, pitman arm, and front CV driveshaft in the box
- Room for 37-inch tires; certain 20- and 22-inch wheel offsets need minor trimming per the tire chart
- Estimated install time 7-10 hours — downloadable installation guide available
Check tire fit for this kit → The manufacturer publishes 5 verified tire sizes for this kit, with wheel width, bolt pattern and offset for each.
The Trail Fortress check
Will it fit your truck?
✓ Fits
✕ Does not fit
- Power Wagon models
- Models equipped with a manual transfer case
Due to variances in motor weight this kit ONLY fits diesel models. Fitment on this page is based on the manufacturer’s application data.
About this kit
5-Inch Lift Kit with N3 Shocks, fitment-checked
Rough Country 34230 is a 5-inch lift kit for the 2025 Ram 2500 4WD, built around lifted front coils, radius arms, a front driveshaft, and two N3 shock pairs. Diesel models only. It does not fit Power Wagon trims or trucks with a manual transfer case.
This 5-inch lift kit for the 2025 Ram 2500 4WD ships as a complete package: driver and passenger radius arms, front and rear box kits, a drop pitman arm, a front track bar drop bracket, rear lift spacers, a front CV driveshaft, and two N3 shock pairs. Clearance is planned around 37-inch tires, with some wheel widths and offsets calling for trimming — check the tire chart against your setup. Because of engine-weight differences it suits diesel trucks only, and Power Wagon or manual-transfer-case models are outside the fitment. Rough Country lists roughly 7-10 hours of install time, and a downloadable installation guide is available.
What’s in the box
Kit contents
- 1× Driver Radius Arm 1368996
- 1× FR Box Kit 36030BOX1
- 1× RR Box Kit 39830BOX4
- 1× 5in Diesel 9463
- 1× N3 Shock Pair 23297
- 1× N3 Shock Pair 23207
- 1× CV Drive Shaft 5063.1$849.95
- 1× Passenger Radius Arm 1368997
Priced components are sold separately here, so a worn shock or arm can be replaced on its own later.
Rough Country shares subassemblies across kits, so individual package labels can carry broader application ranges. The complete 34230 kit fits the vehicles shown in the fitment section above.
Specifications
Specs
| Brand | Rough Country |
| Part number | 34230 |
| UPC / GTIN | 00840269974144 |
| Lift height | 5 in |
| Shock package | N3 series |
| Shipping weight | 295.17 lb |
| Country of origin | US |
| Category | Suspension & Lift Kits › Lift Kits |
