5-Inch Lift Kit with M1 Shocks for 2019–2024 Ram 2500 4WD — Part 36040
- Fits 2019–2024 Ram 2500 4WD diesel models only — check the full fitment list before ordering
- Does not fit Power Wagon or air-ride-equipped trucks
- Kit includes driver and passenger radius arms, front and rear box kits, transfer case clocking ring, and two M1 monotube shock pairs
- Transfer case removal required for clocking ring install; minor cutting required
- Mega Cab trucks with a two-piece driveshaft and carrier bearing may experience take-off vibration
The Trail Fortress check
Will it fit your truck?
✓ Fits
✕ Does not fit
- 'Power Wagon' models Does NOT fit air ride models
Requires removal of Transfer case for clocking ring install for correct front driveline geometry. ONLY fits Diesel models Requires minor cutting. On vehicles equipped with a two piece driveshaft and carrier bearing as on the Mega Cab there is the potential for take off vibration Fitment on this page is based on the manufacturer’s application data.
About this kit
5-Inch Lift Kit with M1 Shocks, fitment-checked
Rough Country 36040 is a 5-inch lift kit for 2019–2024 Ram 2500 4WD diesel trucks, built around forged-style driver and passenger radius arms and two pairs of M1 monotube shocks. Diesel models only — it does not fit Power Wagon or air-ride trucks. Plan on minor cutting and on pulling the transfer case to install the supplied clocking ring.
This 5-inch lift kit for the 2019–2024 Ram 2500 4WD covers diesel trims from Tradesman and Big Horn through Laramie Longhorn, Limited, Rebel, and Special Service. The kit pairs replacement radius arms with a track bar bracket that keeps the front axle centered, and application-valved M1 monotube shocks handle damping on and off pavement. The transfer case has to come out so the clocking ring can go in and correct front driveline geometry, and minor cutting is part of the job. Mega Cab trucks with a two-piece driveshaft and carrier bearing may show take-off vibration. A downloadable installation guide is available.

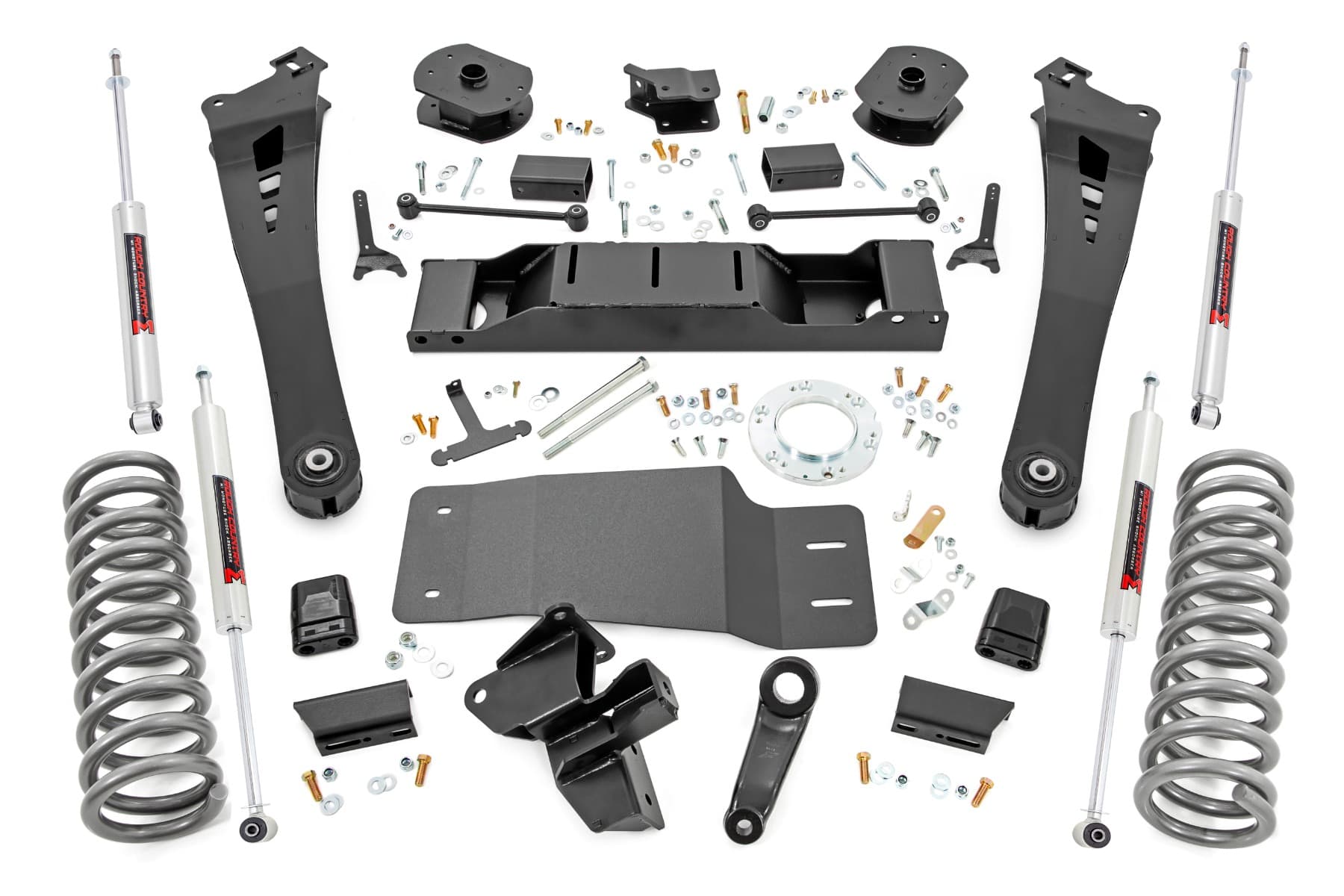

What’s in the box
Kit contents
- 1× Driver Radius Arm 1368996
- 1× FR Box Kit 36030BOX1
- 1× Transfer Case Clocking Ring Box Kit 36030BOX5
- 1× RR Box Kit 39830BOX4
- 1× M1 MONOTUBE SHOCK PAIR 770783P
- 1× M1 MONOTUBE SHOCK PAIR 770801P
- 1× 5in Diesel 9463
- 1× Passenger Radius Arm 1368997
Rough Country shares subassemblies across kits, so individual package labels can carry broader application ranges. The complete 36040 kit fits the vehicles shown in the fitment section above.
Specifications
Specs
| Brand | Rough Country |
| Part number | 36040 |
| UPC / GTIN | 00840269917356 |
| Lift height | 5 in |
| Shock package | M1 series |
| Shipping weight | 291 lb |
| Country of origin | US |
| Category | Suspension & Lift Kits › Lift Kits |
| Installation guide | Downloadable PDF |
