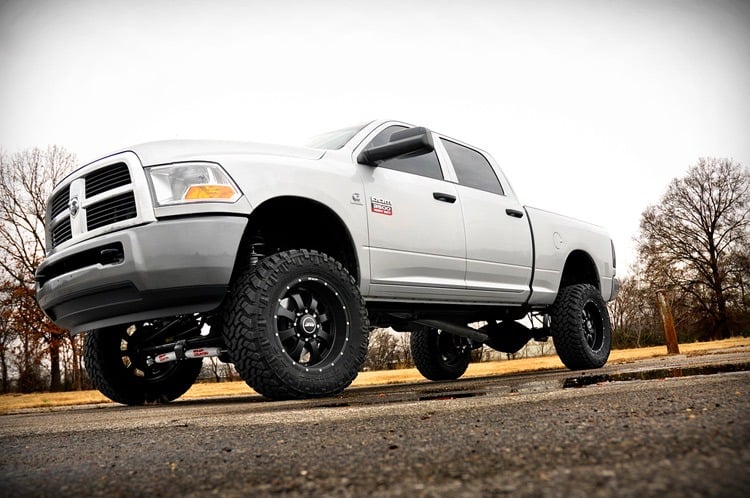

5-Inch Lift Kit with N3 Shocks for Ram 2500/3500 4WD (2011–2013)
- Fits 2011–2013 Ram 2500 4WD and 2011–2012 Ram 3500 4WD: see the fitment list for covered trims
- Does not fit dually models; does not fit Power Wagon models with electronic sway bar disconnects
- Kit contents: 5-inch diesel coils, N3 shock kit, drop bracket box kit, pitman arm, and U-bolts
- Clears factory 17-inch and 20-inch wheels; fabricated rear blocks in place of cast
- Minor drilling required: downloadable installation guide available
The Trail Fortress check
Will it fit your truck?
✓ Fits
✕ Does not fit
- Dually models
- Power Wagon models
Requires minor drilling. On vehicles equipped with a two-piece driveshaft and carrier bearing as on the Mega Cab there is the potential for take-off vibration depending on the severity this can be corrected by shimming down the carrier bearing. Fitment on this page is based on the manufacturer’s application data.
About this kit
5-Inch Lift Kit with N3 Shocks, fitment-checked
Rough Country 348.23 is a 5-inch lift kit for 2011–2013 Ram 2500 4WD and 2011–2012 Ram 3500 4WD. The kit ships with diesel-rate front coils, control arm drop brackets, a pitman arm, U-bolts, and an N3 shock kit. It does not fit dually models, and it does not fit Power Wagon models because of their electronic sway bar disconnects.
This 5-inch lift kit for the 2011–2013 Ram 2500 4WD and 2011–2012 Ram 3500 4WD works with factory 17-inch and 20-inch wheels, so a wheel change is not part of the job. Drop brackets reduce control arm angle and a track bar bracket keeps the front axle centered, holding factory steering geometry. Minor drilling is required. Trucks with a two-piece driveshaft and carrier bearing, as found on the Mega Cab, may show take-off vibration; shimming the carrier bearing down addresses it. A downloadable Rough Country installation guide is available.
What’s in the box
Kit contents
- 1× Pitman Arm 6615$69.95
- 1× 3 4 Blck Ubolts 6599
- 1× 5in Diesel Coils 9287
- 1× N3 Shock Kit 139430
- 1× Drop Bracket Box Kit 1349.3
Priced components are sold separately here, so a worn shock or arm can be replaced on its own later.
Rough Country shares subassemblies across kits, so individual package labels can carry broader application ranges. The complete 348.23 kit fits the vehicles shown in the fitment section above.
Specifications
Specs
| Brand | Rough Country |
| Part number | 348.23 |
| UPC / GTIN | 00843030126490 |
| Lift height | 5 in |
| Shock package | N3 series |
| Shipping weight | 196.45 lb |
| Country of origin | US |
| Category | Suspension & Lift Kits › Lift Kits |
