5-Inch Lift Kit with M1 Shocks for Ram 2500/3500 4WD (2011-2013), Part 34840
- Fits 2011-2013 Ram 2500 4WD and 2011-2012 Ram 3500 4WD - check your trim in the fitment list
- Does not fit dually models; does not fit Power Wagon models with electronic sway bar disconnects
- Kit includes M1 monotube shock pairs, 5-inch diesel coils, pitman arm, U-bolts, and a drop bracket box
- Retains factory steering geometry and clears stock 17-inch and 20-inch wheels
- Minor drilling required - downloadable installation guide available
The Trail Fortress check
Will it fit your truck?
✓ Fits
✕ Does not fit
- Dually models
- Power Wagon models
Requires minor drilling. On vehicles equipped with a two-piece driveshaft and carrier bearing as on the Mega Cab there is the potential for take-off vibration depending on the severity this can be corrected by shimming down the carrier bearing. Fitment on this page is based on the manufacturer’s application data.
About this kit
5-Inch Lift Kit with M1 Shocks, fitment-checked
Rough Country 34840 is a 5-inch lift kit for 2011-2013 Ram 2500 4WD and 2011-2012 Ram 3500 4WD models, built around drop brackets, diesel coils, and two pairs of M1 monotube shocks. It works with factory 17-inch and 20-inch wheels. Minor drilling is required. It does not fit dually or Power Wagon models.
This 5-inch lift kit for the 2011-2013 Ram 2500 4WD and 2011-2012 Ram 3500 4WD covers listed trims from Tradesman and ST up through Laramie Longhorn. The box carries a pitman arm, black U-bolts, diesel coil springs, a control arm drop bracket set, and two M1 monotube shock pairs, with a track bar bracket to keep the front axle centered. Minor drilling is part of the job. Dually and Power Wagon trucks are excluded, and Mega Cab trucks running a two-piece driveshaft with carrier bearing can show take-off vibration that shimming the carrier bearing down addresses. A downloadable installation guide is available.

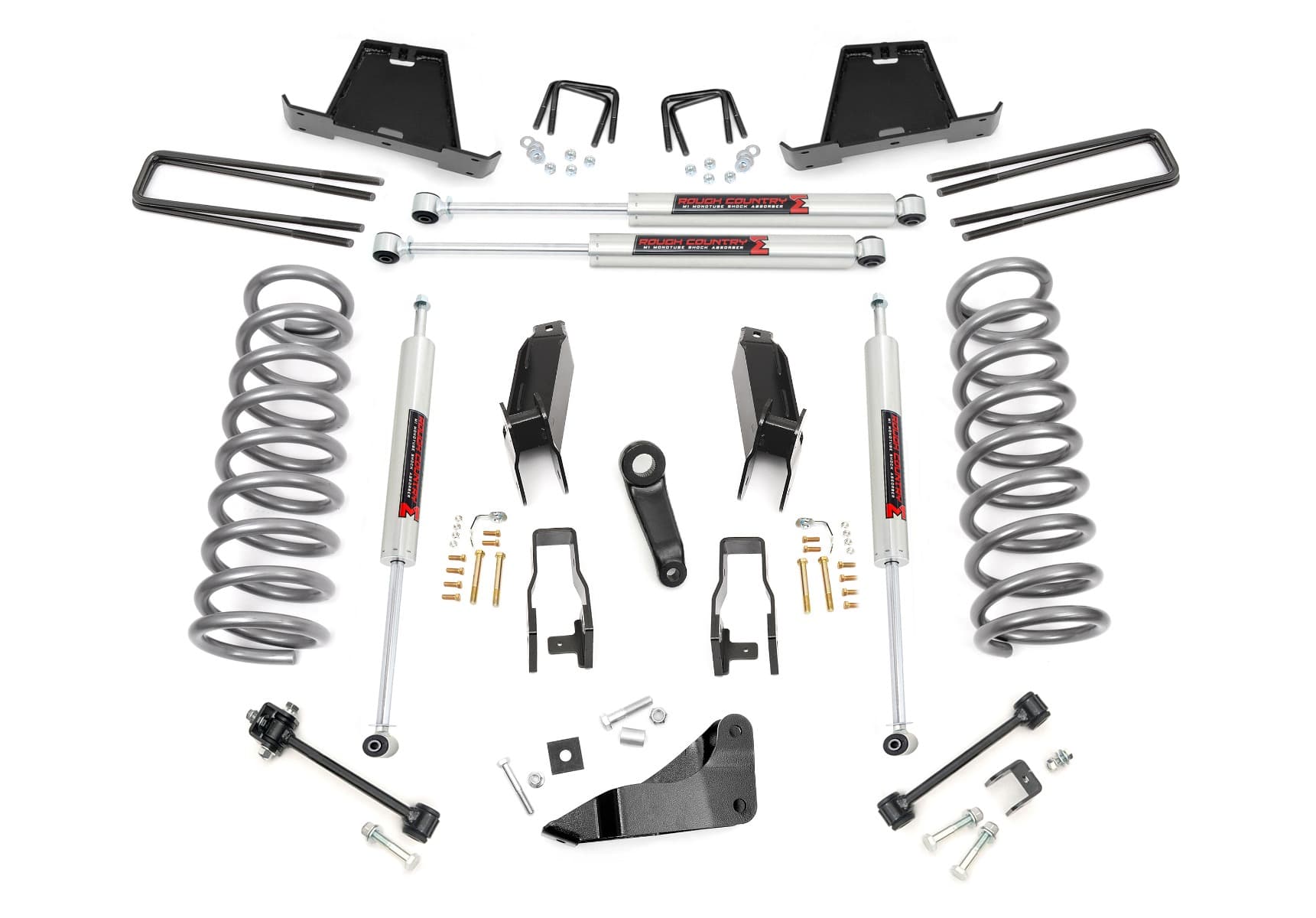

What’s in the box
Kit contents
- 1× Pitman Arm 6615$69.95
- 1× 3 4 Blck Ubolts 6599
- 1× 5in Diesel Coils 9287
- 1× Drop Bracket Box Kit 1349.3
- 1× M1 MONOTUBE SHOCK PAIR 770757P
- 1× M1 MONOTUBE SHOCK PAIR 770744P
Priced components are sold separately here, so a worn shock or arm can be replaced on its own later.
Rough Country shares subassemblies across kits, so individual package labels can carry broader application ranges. The complete 34840 kit fits the vehicles shown in the fitment section above.
Specifications
Specs
| Brand | Rough Country |
| Part number | 34840 |
| UPC / GTIN | 00840269969034 |
| Lift height | 5 in |
| Shock package | M1 series |
| Shipping weight | 196 lb |
| Country of origin | US |
| Category | Suspension & Lift Kits › Lift Kits |
