5-Inch Lift Kit with N3 Shocks for Ram 2500 4WD (2011-2013)
- Fits 2011-2013 Ram 2500 4WD and 2011-2012 Ram 3500 4WD. Check the fitment list before ordering
- Does not fit dually models; does not fit Power Wagon models with electronic sway bar disconnects
- Kit contents: coils, N3 shock kit, control arm drop bracket box, pitman arm, and 3/4-inch black U-bolts
- Retains factory 17-inch and 20-inch wheels: no wheel change required
- Minor drilling required; downloadable installation guide available
The Trail Fortress check
Will it fit your truck?
✓ Fits
✕ Does not fit
- Dually models
- Power Wagon models
Requires minor drilling. On vehicles equipped with a two-piece driveshaft and carrier bearing as on the Mega Cab there is the potential for take-off vibration depending on the severity this can be corrected by shimming down the carrier bearing. Fitment on this page is based on the manufacturer’s application data.
About this kit
5-Inch Lift Kit with N3 Shocks, fitment-checked
Rough Country 349.23 is a 5-inch lift kit for 2011-2013 Ram 2500 4WD and 2011-2012 Ram 3500 4WD, built around an N3 shock kit, front coils, control arm drop brackets, a pitman arm, and 3/4-inch black U-bolts. It works with factory 17-inch and 20-inch wheels. Dually and Power Wagon models are not covered.
This 5-inch lift kit for the 2011-2013 Ram 2500 4WD (and 2011-2012 Ram 3500 4WD) uses drop brackets to keep control arm angles closer to stock, plus a track bar bracket to hold the front axle centered. The N3 shock kit, coils, fabricated blocks, pitman arm, and U-bolts ship together as one package. Minor drilling is part of the install. Mega Cab trucks with a two-piece driveshaft and carrier bearing may show take-off vibration, correctable by shimming the carrier bearing down. A downloadable installation guide is available.

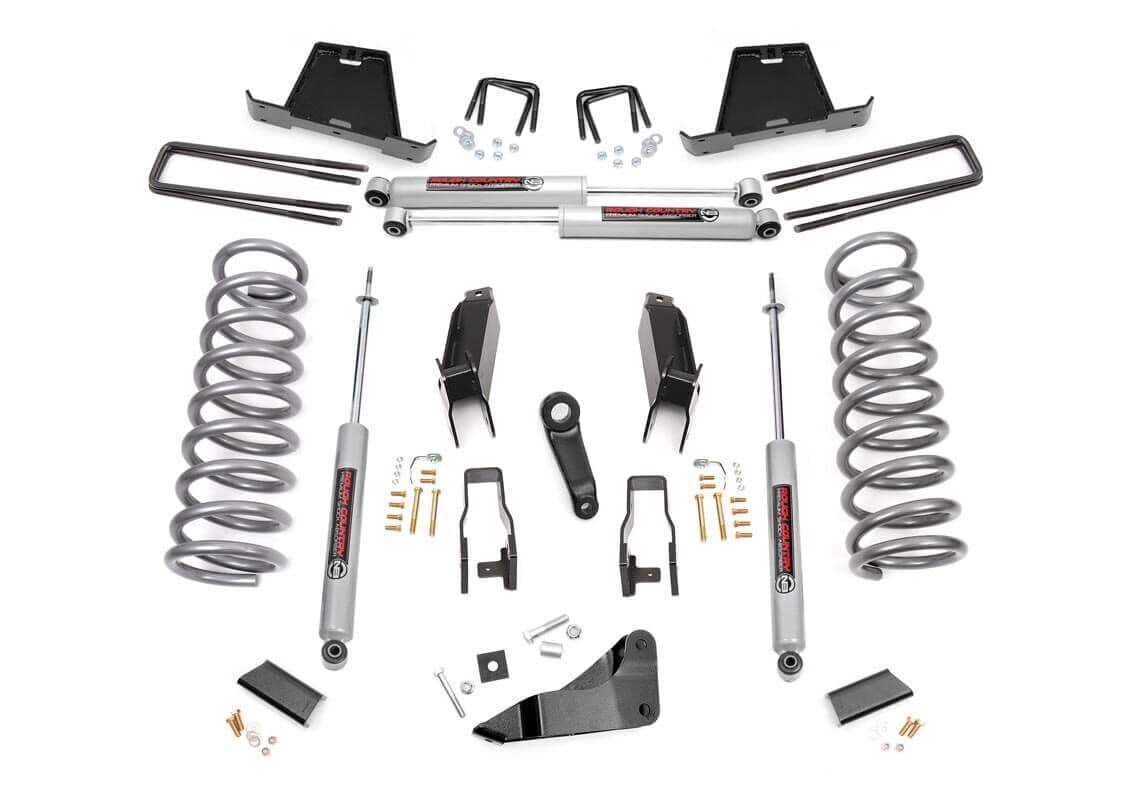

What’s in the box
Kit contents
- 1× Coils 9291
- 1× Pitman Arm 6615$69.95
- 1× 3 4 Blck Ubolts 6599
- 1× N3 Shock Kit 139430
- 1× Drop Bracket Box Kit 1349.3
Priced components are sold separately here, so a worn shock or arm can be replaced on its own later.
Rough Country shares subassemblies across kits, so individual package labels can carry broader application ranges. The complete 349.23 kit fits the vehicles shown in the fitment section above.
Specifications
Specs
| Brand | Rough Country |
| Part number | 349.23 |
| UPC / GTIN | 00843030126513 |
| Lift height | 5 in |
| Shock package | N3 series |
| Shipping weight | 182.4 lb |
| Country of origin | US |
| Category | Suspension & Lift Kits › Lift Kits |
