5-Inch Lift Kit with M1 Shocks for Ram 2500/3500 4WD (2011-2013), Part 34940
- Fits 2011-2013 Ram 2500 4WD and 2011-2012 Ram 3500 4WD. Check the full fitment list and exclusions
- Does not fit dually models; does not fit Power Wagon models equipped with electronic sway bar disconnects
- Kit contents include two M1 monotube shock pairs, coils, pitman arm, U-bolts, and a drop bracket box kit
- Works with factory 17-inch and 20-inch wheels; control arm drop brackets and track bar bracket included
- Minor drilling required: downloadable installation guide available
The Trail Fortress check
Will it fit your truck?
✓ Fits
✕ Does not fit
- Dually models
- Power Wagon models
Requires minor drilling. On vehicles equipped with a two-piece driveshaft and carrier bearing as on the Mega Cab there is the potential for take-off vibration depending on the severity this can be corrected by shimming down the carrier bearing. Fitment on this page is based on the manufacturer’s application data.
About this kit
5-Inch Lift Kit with M1 Shocks, fitment-checked
Rough Country 34940 is a 5-inch lift kit for the 2011-2013 Ram 2500 4WD and the 2011-2012 Ram 3500 4WD. The kit is built around two M1 monotube shock pairs, front coils, a drop bracket box kit, a pitman arm, and black U-bolts. It does not fit dually models, and it does not fit Power Wagon models with electronic sway bar disconnects.
This 5-inch lift kit for the 2011-2013 Ram 2500 4WD covers Tradesman through Laramie Longhorn trims, plus the 2011-2012 Ram 3500 4WD in ST, SLT, and Laramie form. Control arm drop brackets and a track bar bracket keep front geometry and axle centering close to stock, and the kit is designed around factory 17-inch and 20-inch wheels. Minor drilling is part of the job. Mega Cab trucks running a two-piece driveshaft and carrier bearing can show take-off vibration, which is addressed by shimming the carrier bearing down. A downloadable Rough Country installation guide is available.
What’s in the box

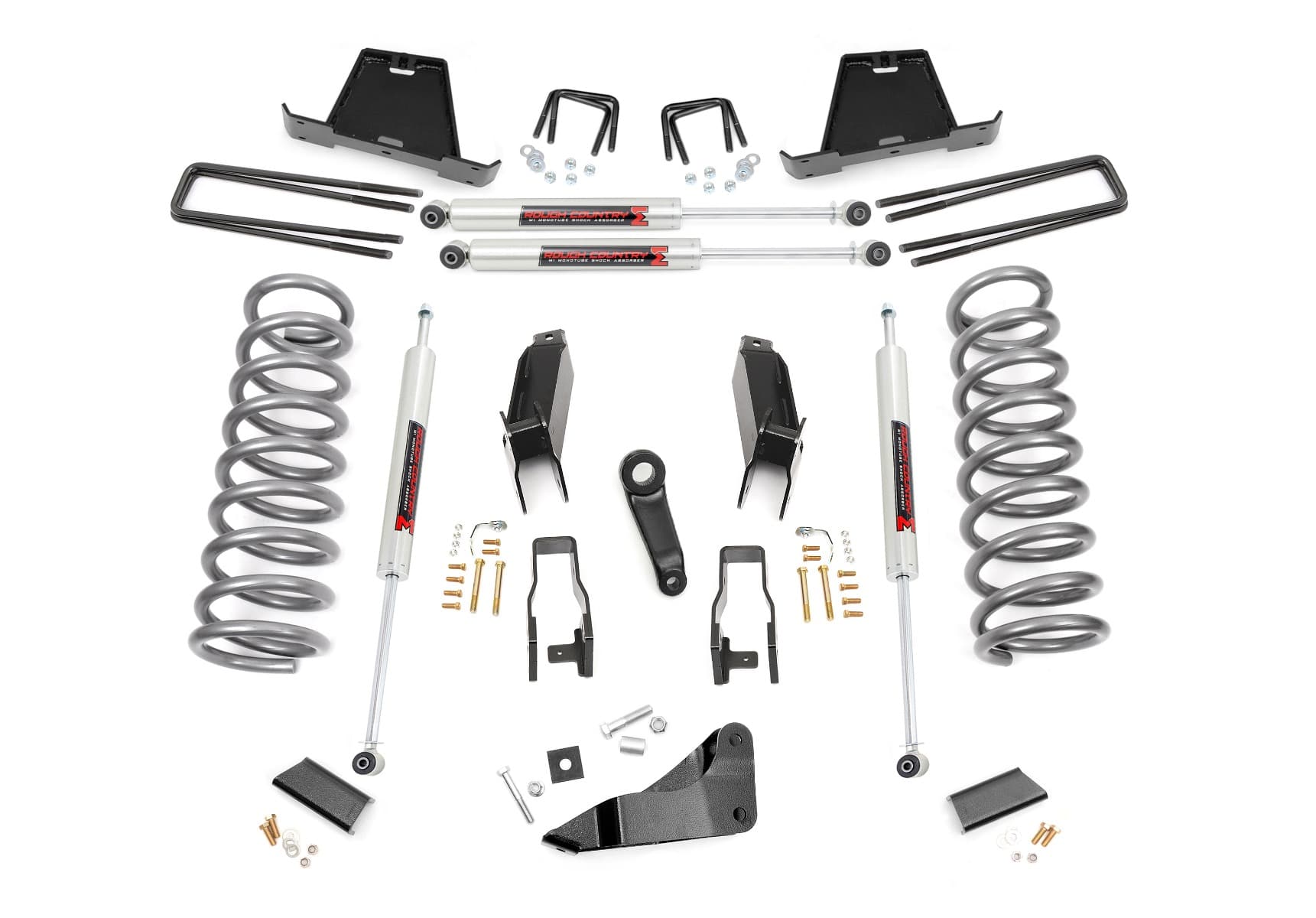

Kit contents
- 1× Coils 9291
- 1× Pitman Arm 6615$69.95
- 1× 3 4 Blck Ubolts 6599
- 1× Drop Bracket Box Kit 1349.3
- 1× M1 MONOTUBE SHOCK PAIR 770757P
- 1× M1 MONOTUBE SHOCK PAIR 770744P
Priced components are sold separately here, so a worn shock or arm can be replaced on its own later.
Rough Country shares subassemblies across kits, so individual package labels can carry broader application ranges. The complete 34940 kit fits the vehicles shown in the fitment section above.
Specifications
Specs
| Brand | Rough Country |
| Part number | 34940 |
| UPC / GTIN | 00840269969058 |
| Lift height | 5 in |
| Shock package | M1 series |
| Shipping weight | 182 lb |
| Country of origin | US |
| Category | Suspension & Lift Kits › Lift Kits |
