5-Inch Lift Kit with N3 Shocks for 2014–2018 Ram 2500 4WD — Part 35720
- Fits listed 2014–2018 Ram 2500 4WD trims — see the full fitment list before ordering
- Does not fit Power Wagon models; Mega Cab trucks with a two-piece driveshaft and carrier bearing may show take-off vibration
- Includes application-valved N3 series shocks and a pitman arm
- Works with rear coil spring and rear air ride suspension; ride height arms adjust the rear up to 1-inch above the front on air ride
- Drilling and cutting required — install time listed at 6-8 hours, downloadable installation guide available
The Trail Fortress check
Will it fit your truck?
✓ Fits
✕ Does not fit
- "Power Wagon" models
Requires drilling and cutting. On vehicles equipped with a two piece driveshaft and carrier bearing as on the Mega Cab there is the potential for take off vibration depending on the severity this can be corrected with shimming down the carrier bearing. SKU: 1161. Fitment on this page is based on the manufacturer’s application data.
About this kit
5-Inch Lift Kit with N3 Shocks, fitment-checked
Rough Country 35720 is a 5-inch lift kit for listed 2014–2018 Ram 2500 4WD trims, from Tradesman and Big Horn through Laramie Longhorn and Limited. It pairs radius arm drop brackets and coil spring spacers with application-valved N3 series shocks, and works with both rear coil spring and rear air ride setups. It does not fit Power Wagon models, and the install calls for drilling and cutting.
This 5-inch lift kit for the 2014–2018 Ram 2500 4WD arrives as four sub-kits: a front radius arm drop box kit, a rear box kit, a 5-inch N3 shock kit, and a pitman arm. The front side uses coil spring spacers with track bar and sway-bar brackets; the rear brings lift spacers, sway-bar links, bump stop brackets, and ride height arms that let you set the rear as much as 1-inch above the front on air ride models. Factory progressive rate coil springs are retained. Power Wagon models are excluded. Plan for drilling and cutting, and review the downloadable installation guide before you start.

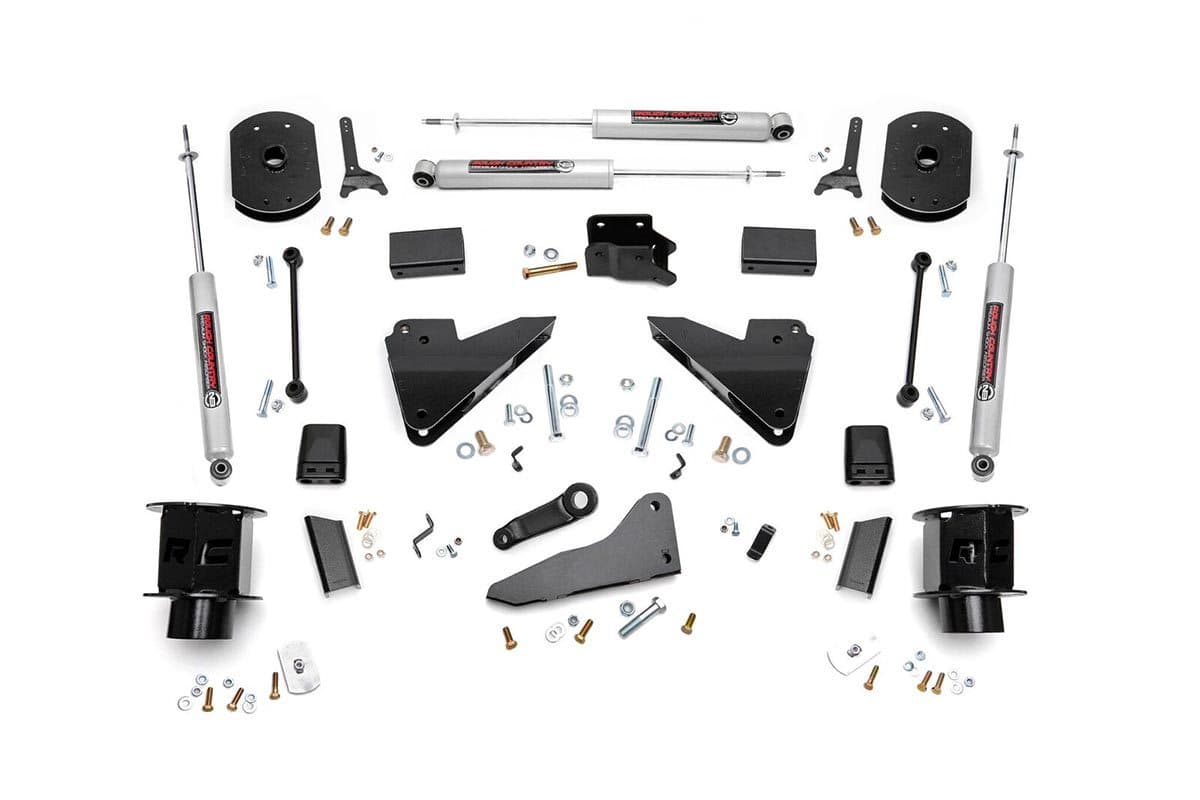

What’s in the box
Kit contents
- 1× FR Radius Arm Drop Box Kit 1357BOX1
- 1× RR Box Kit 1368BOX5
- 1× 5in N3 Shock Kit 136830
- 1× Pitman Arm 6615
Rough Country shares subassemblies across kits, so individual package labels can carry broader application ranges. The complete 35720 kit fits the vehicles shown in the fitment section above.
Specifications
Specs
| Brand | Rough Country |
| Part number | 35720 |
| UPC / GTIN | 00843030125141 |
| Lift height | 5 in |
| Shock package | N3 series |
| Shipping weight | 132 lb |
| Country of origin | US |
| Category | Suspension & Lift Kits › Lift Kits |
| Installation guide | Downloadable PDF |
